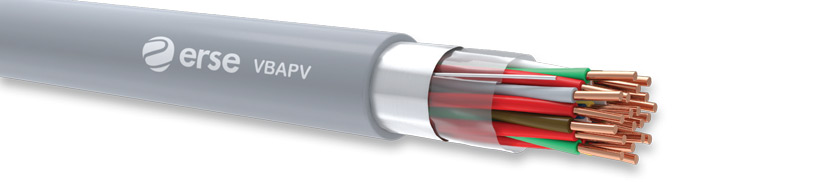

VBAPV & VBAPV-K

At indoor installations;
– Telephone exchanges and subscriber distributions
– Signal and data transmission.

Conductor	IEC 60228; DIN VDE 0295; EN 60228 Class 1 Electrolytic Copper
Insulation	PVC Compound
Colour Code	TS IEC 60189-2
Stranding	In layers up to 10 pairs 20 pairs – 100 pairs: 10 pair groups twisted together; each group is wrapped by polypropylene identification tape
Wrapping	Pes Tape (more than 10 pairs)
Screen	Tinned Copper Drain Wire + Pes Tape
Sheath	PVC Compound
Sheath Colour	RAL 7001 Grey

CONDUCTOR RESISTANCE		INSULATION RESISTANCE	MUTUAL CAPACITY	TEMPERATURE RANGE	TEST VOLTAGE (DC)	OPERATING VOLTAGE	BENDING RADIUS	FLAME RETARDANT TEST
mm 0,5	Ω/km 97,8	500MΩxkm	120nF/km	-30ºC+70ºC	1000V	250V	8 x Cable Ø	IEC 60332-1-2 VDE 0482-332-1-2 EN 60332-1-2

CODE NR.		NUMBER OF PAIRS AND WIRE DIAMETER (mm)	OVERALL DIAMETER (mm)	COPPER WEIGHT (kg/km)	APPROX. CABLE WEIGHT (kg/km)	STANDARD LENGTH (mt)
VBAPV	VBAPV-K
342405012	342505012	1 x 2 x 0,50	3,30	7	23	100/500/1000
342405022	342505022	2 x 2 x 0,50	4,30	13	29	100/500/1000
342405032	342505032	3 x 2 x 0,50	4,60	15	39	100/500/1000
342405042	342505042	4 x 2 x 0,50	4,80	19	44	100/500/1000
342405052	342505052	5 x 2 x 0,50	5,20	22	52	100/500/1000
342405062	342505062	6 x 2 x 0,50	5,60	26	59	100/500/1000
342405102	342505102	10 x 2 x 0,50	7,40	40	93	100/500/1000
342405202	342505202	20 x 2 x 0,50	9,20	77	147	100/500/1000
342405302	342505302	30 x 2 x 0,50	10,70	110	205	100/500/1000
342405502	342505502	50 x 2 x 0,50	13,40	180	314	100/500/1000
342405112	342505112	100 x 2 x 0,50	19,00	365	600	100/500/1000
342405222	342505222	200 x 2 x 0,50	26,00	725	1140	100/500
