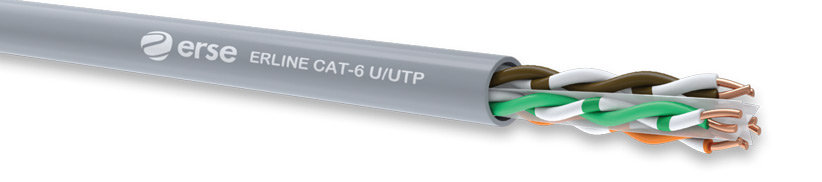

ERLINE CAT-6 U/UTP
- Data transmission systems which reaches up to the speed of 250 Mbit/Sec
- Structured cabling for computer networks such as Ethernet over twisted pair
- Carry other signals such as telephony and video
- Performance of up to 250 MHz and is suitable for 10BASE-T, 100BASE-TX (Fast Ethernet), 1000BASE-T (Gigabit Ethernet) and 10GBASE-T (10-Gigabit Ethernet)
NOTES
- It is suitable for analog and digital signal transmission up to 250Mbps.
| Conductor | Electrolytic Copper Conductor (24 AWG/23 AWG) |
| Insulation | Solid PE Insulation |
| Stranding | 4-pair common twist with central element |
| Sheath | PVC Compound 6.20mm Ø |
| Sheath Colour | RAL 7001 Grey |
| CONDUCTOR RESISTANCE | INSULATION RESISTANCE(500V) | OPERATING VOLTAGE (25ºC) | TEST VOLTAGE CORE/CORE | BEDING RADIUS | CHARACTERISTIC IMPEDANCE |
| 94Ω/km | 5000MΩxkm | 250V | 1200V | 8x Cable Ø | 100 ± 15Ω |
| TEMPERATURE RANGE | FLAME RETARDANT TEST | MUTUAL CAPACITANCE (1 KHz) | VELOCITY OF PROPAGATION |
| -20ºC+60ºC | IEC 60332-1-2 VDE 0482-332-1-2 EN 60332-1-2 | pF/m 48 | 67% |
| CORE IDENTIFICATION | COLOUR NUMBER | A WIRE | B WIRE |
| 1 | Blue | White/Blue | |
| 2 | Orange | White/Orange | |
| 3 | Green | White/Green | |
| 4 | Brown | White/Brown |
| FREQUENCY MHz | ATTENUATION dB/100m (Max) | NEAR END CROSSTALK (NEXT) dB (min) | RETURN LOSS dB (min) |
| 1 | 2,1 | 74 | 20 |
| 10 | 6,0 | 59 | 25 |
| 16 | 7,6 | 56 | 25 |
| 20 | 8,5 | 55 | 25 |
| 62,5 | 15,5 | 47 | 21,5 |
| 100 | 19,9 | 44 | 20,1 |
| 125 | 22,5 | 43 | 29,5 |
| 155,5 | 25,4 | 42 | 28,8 |
| 200 | 29,2 | 40 | 18,0 |
| 250 | 33,0 | 38 | 17,3 |
